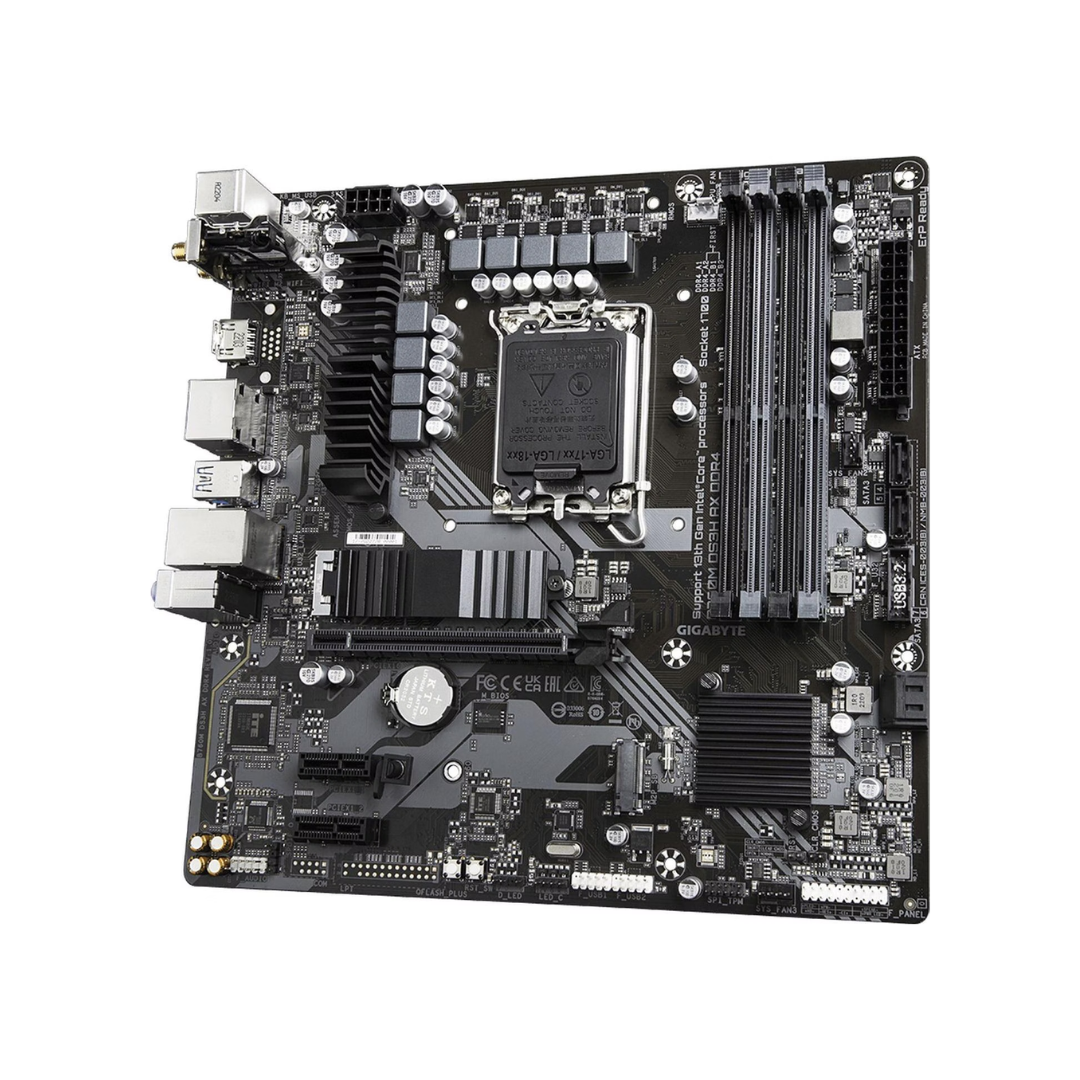

Gigabyte B760M DS3H AX DDR4
The GIGABYTE B760M Gaming X DDR4 is an ATX motherboard with the Intel B760 chipset and LGA 1700 socket. The motherboard is suitable for 12th- and 13th-generation Intel Core desktop processors, codenamed Alder Lake and Raptor Lake. It supports DDR4 memory at up to 5,333 MHz and is highly suitable for overclocking thanks to its outstanding power delivery. In addition to stable power delivery with high-quality VRMs, the GIGABYTE B760M Gaming X DDR4 offers further highlights that make overclocking your system significantly easier. DrMOS for adjusting the VRM voltage and frequency modulation, a VRM heatsink, a Clear CMOS jumper, a Q-Flash Plus button, and reset buttons provide safety during overclocking attempts on this board.
| Key details at a glance | |
|---|---|
| Motherboard features | Clear CMOS Button, Front Panel Audio Connector, RGB Header |
| Wireless transmission | Bluetooth, Wi-Fi |
| Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
| Number of memory modules (RAM) | 4× |
| Memory type | DDR4 RAM |
| Internal connection options | M.2 (2×), S-ATA III (4×) |
| General information | |
| Item number | 23677383 |
| Manufacturer | Gigabyte |
| Category | Motherboard |
| Manufacturer number | B760M DS3H AX DDR4 |
| Release date | 09.12.2022 |
| Sales rank (Motherboard category) | 119 of 1028 |
| Motherboard features | |
| Form factor | Micro ATX (mATX) |
| Socket | LGA 1700 |
| Chipset | Intel B760 Express |
| Motherboard features | Clear CMOS Button, Front Panel Audio Connector, RGB Header |
| Operating system compatibility | Windows, Windows 10 |
| BIOS type | UEFI AMI |
| Wireless transmission | Bluetooth, Wi-Fi |
| Wi-Fi standard | Wi-Fi 6 / 802.11ax |
| Processor | |
| Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
| Memory | |
| Memory form factor | DIMM |
| Number of memory modules (RAM) | 4× |
| Max. memory (RAM) | 128 GB |
| Memory chip | DDR4 RAM |
| Max. RAM OC | 5333 MHz |
| Supported memory speed | 2133, 2400, 2666, 2933, 3000, 3200, 4800 MHz |
| Memory type | DDR4 RAM |
| RAM buffer | unbuffered |
| Graphics features | |
| Video ports | DisplayPort (2×), HDMI (1×) |
| Video connection version | DisplayPort 1.2, HDMI 2.0 |
| Network | |
| Network ports | RJ45 (1×) |
| Ethernet controller | RZ608 |
| Max. port speed | 2.50 Gbit/s |
| Audio | |
| Chip | High Definition Audio |
| Audio channel | 7.1 channel |
| Audio connections | Headphone output (3×) |
| Data storage | |
| RAID configuration | 0, 1, 5, 10 |
| Internal interfaces | |
| Internal connection options | M.2 (2×), S-ATA III (4×) |
| Expansion slot | PCI Express x1 (2×), PCI Express x16 (1×) |
| PCI Express version (max.) | 4 |
| Number of fan connectors | 4 |
| Additional connections | |
| USB ports | USB-A, USB-C |
| Detailed USB ports | USB-A 2.0 (3×), USB-C 4 (3×) |
| Power supply | |
| Power connectors | 24-pin ATX, 8-pin ATX 12V |
| Origin | |
| Country of origin | China |
| Voluntary climate contribution | |
| CO₂ emissions | 384.88 kg |
| Climate contribution | CHF 7.42 |
